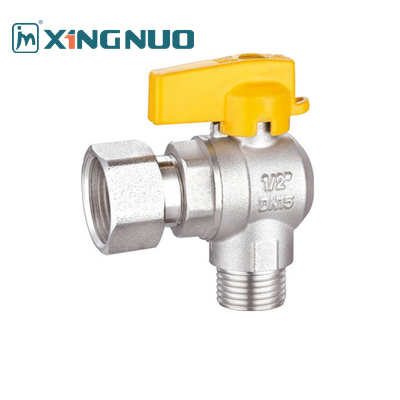

Male And Female Threaded Gas Valve AV1007-MF M1/2" X F3/4" Nut PTFE Male X Revolving Female

Name: Male And Female Threaded Gas Valve AV1007MF M12quot X F34quot Nut PTFE Male X Revolving Female
Brand: Taizhou XingNuo
Price: 1 USD

Brand Name : Taizhou XingNuo

Model Number : AV1007-MF

Place of Origin : Zhejiang Taizhou

MOQ : 3000Pcs

Payment Terms : T/T

Packaging Details : Xingnuo Package

Stem Material : Brass

Nominal Pressure : Max.8bar

Working Temperature : -10~100°C

Threaded : F/F ISO228/1

Processing Technic : Sand blast and nickel plate

Test : 100％leak tested

Handle Material : Aluminium

Brass Material : HPB57-3

Seal Material : PTFE

Size : 1/2 inch

Connection : NPT

Type : Ball Valve

Temperature : -10°C~110°C

Brass Boby : Forged

End Type : Threaded

Operation : Manual

Temperature Range : 0-150°F

Material : Brass

Application : Gas

Contact Now

Brass AV1007-MF Male x Revolving Female Nut M1/2" x F3/4" Ball Valves

Specification

forged brass body
sand blast and nickel plated
nominal pressure:Max.8bar(116psi)
temperature:-10~100°C(14～212°F)
threaded ISO228/1
100% leak tested

Technical Specification

Dimensions

SIZE

M1/2" x F3/4"

14.8

Product Details

Brass Valve Body: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Brass Bonnet: High-density forging, no blister, no air holes, no leakages. Made by special high precision CNC machines.
Ball Valve: Smooth and wear resisting, with good sealing performance.
Brass Valve Stem: Made of hot rolled brass, high tensile strength, good toughness, long-term use without deformation, fracture.
Handle: The handle is made of aluminium alloy by casting, professional surface painting, wear resisting and with anti-corrosion. Small appearance, flexible opening and closing when installed in various environments.
Ball Seat: Made by pure PTFE(polytetrafluoroethylene), with high elasticity and wear resistance, is not easy aging.
Stainless Steel Lock screw: Internal design of anti-loose, can be used for long time.
O-ring: made of imported raw material,special for gas, small friction coefficient, long service life and not easy to leak.

Reminding

The thread, color of handle, materials, etc. can be customized.
Male x Female Brass Gas Ball Valve with Aluminium handle.
Ball valves in yellow handle can be only used in all types of gas, town gas (1st famlily), natural gas (2nd family), and liquid gas (3rd family). They are not allowed to be used in any water and air systems.

Certificates of AV 1007-MF

Brass Gas Ball Valve series

1. The AV1007-MF Brass Gas Ball Valve is designed with both male and female threaded ends, allowing for easy installation and compatibility with various gas systems. The valve features a M1/2" male thread on one end and a F3/4" female thread on the other, making it versatile for different piping configurations. The valve is constructed from durable brass material, ensuring long-lasting performance and resistance to corrosion.

2. The male x revolving female design of the valve allows for smooth operation and precise control of gas flow. The PTFE (polytetrafluoroethylene) sealing material provides a tight seal to prevent leaks and ensure safety in gas applications. The valve is suitable for use in residential, commercial, and industrial settings where reliable gas control is essential.

3. With its compact size and sturdy construction, the AV1007-MF Brass Gas Ball Valve is a reliable choice for gas plumbing systems. Whether used for natural gas, propane, or other gases, this valve offers a secure and efficient solution for regulating gas flow. The male x female threaded ends make it easy to connect to existing piping, while the revolving female end allows for convenient adjustment of the valve position.

Compant Profiles

Taizhou Xingnuo Technology Co., Ltd., formerly known as Yuhuan precision machinery factory, was founded in 1992 with a registered capital of 14.53 million yuan and an area of 13000 square meters. Since its establishment, the company has been engaged in the development and production of brass. The company has accumulated rich production experience It has created a group of professional technicians and established a complete set of product quality assurance system. The company has become a professional manufacturer integrating design, development and production.

The company mainly produces more than a thousand varieties of water separators, valve series, embedded pipe fittings series, heating radiator series, HVAC and other series, mainly made of brass and stainless steel. It has more than 800 sets of production equipment and more than 50 sets of testing equipment and other professional development and production of casting finishing equipment.

Xingnuo regards product quality as the life of the enterprise, and earnestly implements the quality policy of "pragmatic, precise manufacturing, continuous improvement and customer satisfaction", Modern quality management methods and standardized testing procedures are adopted to ensure reliable quality. Xingnuo has a design studio, a laboratory center and a testing center. Our products are exported to Russia, the United States, Germany, Australia, Canada and other countries and regions, and have formed regional and long-term cooperation with many domestic listed companies and distributors. We are your reliable business partner.

Packaging Details

SIZE

Weight(g)

Inner Box(mm)

Carton(mm)

Qty per

inner box

Qty per

carton

1/2"x3/4"

251

17x12x8.5

35x25x18
